Access Control · Hardware

Cloud-managed access controllers

Secure entryways with controllers that are reliable, easy to install, and flexible — online in minutes with just power and internet.

Get in touch Explore credentials

Why EntryBit controllers

Zero servers. Zero panels. Zero babysitting.

Easy to install

With just power and internet, controllers are online and fully operational in minutes.

Always available

Doors keep deciding correctly during outages with a local configuration cache and peer-to-peer communication.

Built for compatibility

Standard Wiegand and OSDP readers, wet and dry relays, and removable terminal blocks.

Automatic updates

Firmware stays current with no manual effort — every device, every site, from one dashboard.

Compare models

Pick the controller that fits the door count.

Every EntryBit controller ships with a 1-year warranty, automatic firmware updates, and the same cloud dashboard.

2 Doors

EB-2

A compact two-door controller that mounts cleanly at the door and comes online in minutes — no servers, no panels.

EB-2

Doors & I/O: 2 doors2 auxiliary inputs / outputsRequest-to-exit (REX) + door-position sensor per door
Readers: Wiegand — variable bit length, up to 4 channelsOSDP over RS-485 (9600–115200 baud)PIN / keypad codes
Network: 10/100 Ethernet (RJ45)IEEE 802.1X (EAP-PEAP / TTLS / TLS)DHCP or static IP
Power: Input: 12–24 V DCIntegrated door power: 700 mA @ 12 V · 350 mA @ 24 V
Dimensions: Height: 180 mm / 7.1 inWidth: 180 mm / 7.1 inDepth: 56 mm / 2.2 in
Warranty: 1 year

EB-2 PoE

A compact, PoE+-powered two-door controller — one Ethernet cable delivers power, network and integrated door power, so it comes online in minutes with no separate PSU.

EB-2 PoE

Doors & I/O: 2 doors2 auxiliary inputs / outputsRequest-to-exit (REX) + door-position sensor per door
Readers: Wiegand — variable bit length, up to 4 channelsOSDP over RS-485 (9600–115200 baud)PIN / keypad codes
Network: 10/100 Ethernet (RJ45)IEEE 802.1X (EAP-PEAP / TTLS / TLS)DHCP or static IP
Power: Input: PoE+ (IEEE 802.3at)Integrated door power: 700 mA @ 12 V · 350 mA @ 24 V
Dimensions: Height: 180 mm / 7.1 inWidth: 180 mm / 7.1 inDepth: 56 mm / 2.2 in
Warranty: 1 year

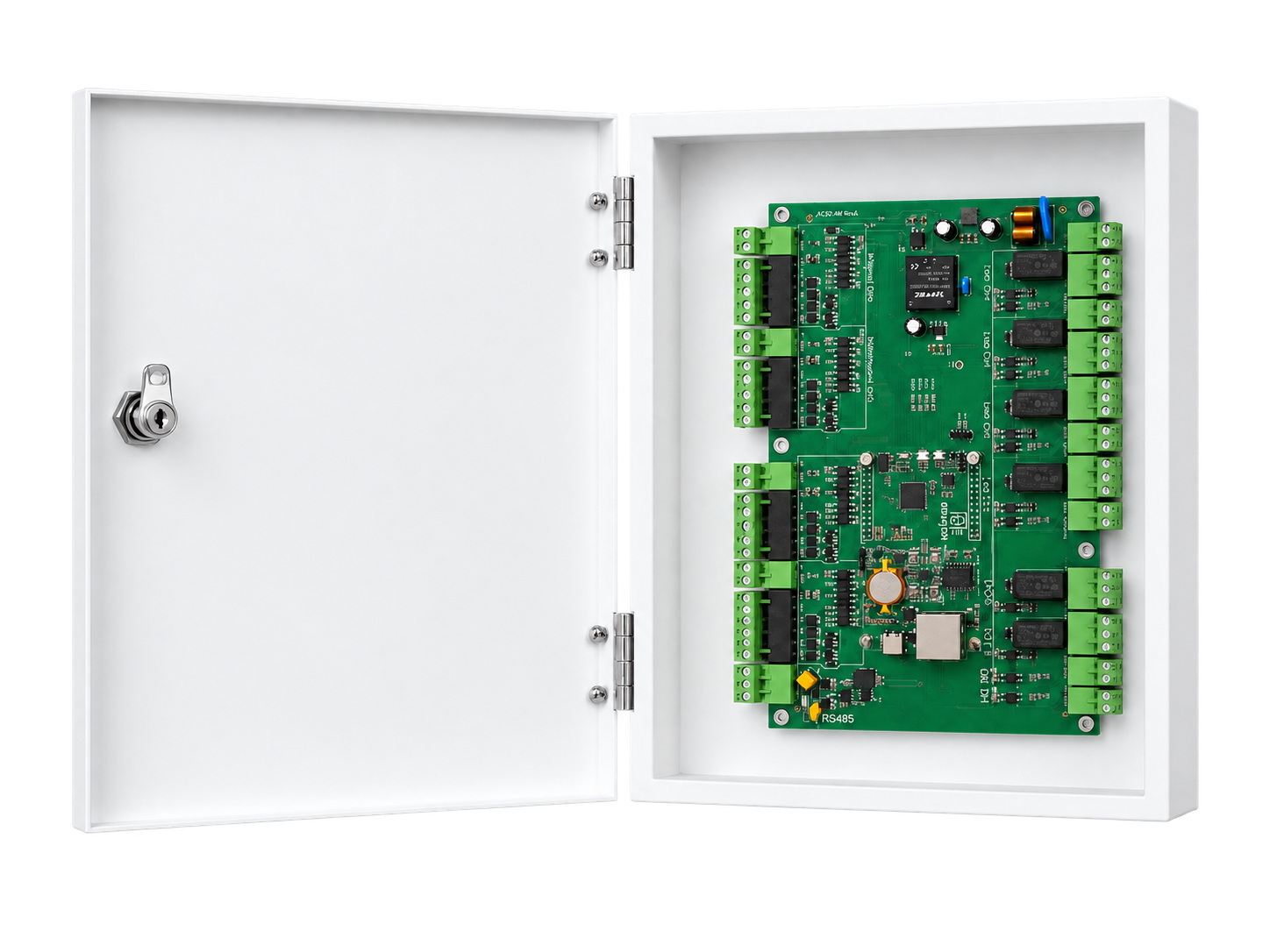

EB-4

A four-door controller for full-building deployments — integrated door power, fire-alarm interface, and the same zero-server setup.

EB-4

Doors & I/O: 4 doors2 auxiliary inputs / outputs1 fire-alarm interface (FAI) — releases all doors for egressRequest-to-exit (REX) + door-position sensor per door
Readers: Wiegand — variable bit length, up to 4 channelsOSDP over RS-485 (9600–115200 baud)PIN / keypad codes
Network: 10/100 Ethernet (RJ45)IEEE 802.1X (EAP-PEAP / TTLS / TLS)DHCP or static IP
Power: Input: 12–24 V DCIntegrated door power: 1 A @ 12 V · 500 mA @ 24 V
Dimensions: Height: 420 mm / 16.5 inWidth: 320 mm / 12.6 inDepth: 115 mm / 4.5 in
Warranty: 1 year

Not sure which model fits?

Tell us about your building and we’ll spec the deployment with you.

Get in touch
